Copper in the structure of Crystal Structure of Nitrous Oxide Reductase From Pseudomonas Nautica, At 2.4A Resolution (pdb 1qni)






The binding sites of Copper atom in the structure of Crystal Structure of Nitrous Oxide Reductase From Pseudomonas Nautica, At 2.4A Resolution (pdb code 1qni). This binding sites where shown with 5.0 Angstroms radius around Copper atom.
The 1qni structure was solved by K.BROWN, M.TEGONI, C.CAMBILLAU, with X-Ray Crystallography technique, brief refinement statistics is given in the table below:
Resolution (A)20.0-2.4
Space groupP61
a (A)211.290
b (A)211.290
c (A)166.457
alpha (°)90.00
beta (°)90.00
gamma (°)120.00
Rfactor (%)22.77
Rfree (%)26.1


Copper Binding Sites:

Copper binding site 1 out of 36 in 1qni


Copper binding site 1 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 1 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 1 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: Ala495, A: Thr525, A: His526, A: Gly527, A: Cys561, A: Trp563, A: Cys565, A: His569, A: Met572, A: Cua701,

conact list:


AtomAtomDistance (A)
CuO A:Ala4954.55
CuO A:Thr5254.63
CuNE2 A:His5263.98
CuCB A:His5263.82
CuND1 A:His5262.02
CuCD2 A:His5264.19
CuCE1 A:His5262.76
CuCG A:His5263.22
CuCA A:His5264.07
CuN A:Gly5274.72
CuCB A:Cys5613.32
CuSG A:Cys5612.27
CuCA A:Cys5614.75
CuC A:Trp5634.97
CuO A:Trp5633.84
CuN A:Cys5654.79
CuCB A:Cys5653.48
CuSG A:Cys5652.32
CuCA A:Cys5654.75
CuND1 A:His5694.44
CuCB A:Met5724.52
CuCE A:Met5723.24
CuCG A:Met5724.00
CuSD A:Met5722.47
CuCU1 A:Cua7010.00
CuCU2 A:Cua7012.51

interactive model:


Copper binding site 2 out of 36 in 1qni


Copper binding site 2 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 2 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 2 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: His526, A: Cys561, A: Trp563, A: Phe564, A: Cys565, A: His566, A: His569, A: Met572, A: Cua701,

conact list:


AtomAtomDistance (A)
CuND1 A:His5264.33
CuCE1 A:His5264.93
CuO A:Cys5614.38
CuCB A:Cys5613.37
CuSG A:Cys5612.37
CuC A:Cys5614.45
CuCA A:Cys5614.53
CuN A:Trp5634.32
CuC A:Trp5633.49
CuCA A:Trp5634.49
CuO A:Trp5632.61
CuN A:Phe5644.10
CuC A:Phe5644.12
CuCA A:Phe5644.03
CuN A:Cys5653.40
CuCB A:Cys5653.56
CuSG A:Cys5652.28
CuC A:Cys5654.88
CuCA A:Cys5654.10
CuN A:His5664.76
CuO A:His5694.31
CuNE2 A:His5693.92
CuCB A:His5693.79
CuND1 A:His5691.96
CuCD2 A:His5694.12
CuC A:His5694.63
CuCE1 A:His5692.69
CuCG A:His5693.17
CuCA A:His5694.07
CuCB A:Met5724.65
CuCG A:Met5724.91
CuSD A:Met5724.01
CuCU1 A:Cua7012.51
CuCU2 A:Cua7010.00

interactive model:


Copper binding site 3 out of 36 in 1qni


Copper binding site 3 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 3 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 3 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: His79, A: His80, A: His128, A: Asn189, A: His270, A: His325, A: His376, A: His437, A: Cuz801, A: Hoh2120, A: Hoh2252,

conact list:


AtomAtomDistance (A)
CuCB A:His794.20
CuND1 A:His794.27
CuCG A:His794.71
CuNE2 A:His802.10
CuND1 A:His804.17
CuCD2 A:His803.17
CuCE1 A:His802.99
CuCG A:His804.27
CuNE2 A:His1283.65
CuCD2 A:His1284.61
CuCE1 A:His1284.14
CuND2 A:Asn1893.82
CuOD1 A:Asn1894.46
CuCG A:Asn1894.58
CuNE2 A:His2704.58
CuCE1 A:His2704.89
CuNE2 A:His3254.25
CuCE1 A:His3254.22
CuNE2 A:His3762.06
CuND1 A:His3764.14
CuCD2 A:His3763.19
CuCE1 A:His3762.94
CuCG A:His3764.28
CuCB A:His4374.30
CuND1 A:His4374.35
CuCG A:His4374.65
CuS1 A:Cuz8012.16
CuCU3 A:Cuz8012.99
CuCU1 A:Cuz8010.00
CuCU4 A:Cuz8012.56
CuCU2 A:Cuz8013.36
CuO A:Hoh21204.22
CuO A:Hoh22524.21

interactive model:


Copper binding site 4 out of 36 in 1qni


Copper binding site 4 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 4 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 4 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: Asn189, A: His270, A: His325, A: His376, B: Phe564, A: Cuz801, A: Hoh2252,

conact list:


AtomAtomDistance (A)
CuOD1 A:Asn1894.72
CuNE2 A:His2702.08
CuND1 A:His2704.24
CuCD2 A:His2703.08
CuCE1 A:His2703.10
CuCG A:His2704.24
CuNE2 A:His3252.14
CuND1 A:His3254.25
CuCD2 A:His3253.20
CuCE1 A:His3253.07
CuCG A:His3254.33
CuNE2 A:His3763.40
CuN A:His3764.94
CuND1 A:His3764.74
CuCD2 A:His3763.61
CuCE1 A:His3764.16
CuCG A:His3764.45
CuCE2 B:Phe5644.62
CuS1 A:Cuz8012.25
CuCU3 A:Cuz8013.33
CuCU1 A:Cuz8013.36
CuCU4 A:Cuz8014.43
CuCU2 A:Cuz8010.00
CuO A:Hoh22522.55

interactive model:


Copper binding site 5 out of 36 in 1qni


Copper binding site 5 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 5 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 5 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: His79, A: His80, A: His128, A: His270, A: His376, A: Lys397, A: His437, B: Phe564, A: Cuz801, A: Hoh2252, B: Hoh2313,

conact list:


AtomAtomDistance (A)
CuCB A:His794.77
CuND1 A:His793.74
CuCE1 A:His794.45
CuCG A:His794.53
CuNE2 A:His804.80
CuNE2 A:His1284.34
CuNE2 A:His2704.84
CuNE2 A:His3763.74
CuCD2 A:His3763.81
CuCE A:Lys3974.96
CuNZ A:Lys3974.44
CuNE2 A:His4373.96
CuCB A:His4373.48
CuND1 A:His4371.92
CuCD2 A:His4374.02
CuCE1 A:His4372.83
CuCG A:His4372.98
CuCA A:His4374.52
CuCE2 B:Phe5644.25
CuCD2 B:Phe5644.48
CuS1 A:Cuz8012.09
CuCU3 A:Cuz8010.00
CuCU1 A:Cuz8012.99
CuCU4 A:Cuz8012.54
CuCU2 A:Cuz8013.33
CuO A:Hoh22522.53
CuO B:Hoh23133.64

interactive model:


Copper binding site 6 out of 36 in 1qni


Copper binding site 6 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 6 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 6 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: His79, A: His80, A: His128, A: His376, A: His437, B: Met570, A: Cuz801, A: Hoh2252, B: Hoh2313,

conact list:


AtomAtomDistance (A)
CuNE2 A:His794.32
CuCB A:His793.59
CuND1 A:His792.19
CuCD2 A:His794.34
CuCE1 A:His793.16
CuCG A:His793.23
CuNE2 A:His803.61
CuND1 A:His804.76
CuCD2 A:His804.78
CuCE1 A:His803.62
CuNE2 A:His1281.93
CuND1 A:His1284.09
CuCD2 A:His1282.91
CuCE1 A:His1282.97
CuCG A:His1284.08
CuNE2 A:His3764.42
CuNE2 A:His4374.83
CuCB A:His4374.72
CuND1 A:His4373.58
CuCD2 A:His4374.95
CuCE1 A:His4374.02
CuCG A:His4374.25
CuCE B:Met5704.75
CuSD B:Met5704.93
CuS1 A:Cuz8012.21
CuCU3 A:Cuz8012.54
CuCU1 A:Cuz8012.56
CuCU4 A:Cuz8010.00
CuCU2 A:Cuz8014.43
CuO A:Hoh22524.84
CuO B:Hoh23133.61

interactive model:


Copper binding site 7 out of 36 in 1qni


Copper binding site 7 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 7 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 7 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: B: Ala495, B: Thr525, B: His526, B: Gly527, B: Cys561, B: Trp563, B: Cys565, B: His569, B: Met572, B: Cua701,

conact list:


AtomAtomDistance (A)
CuO B:Ala4954.83
CuO B:Thr5254.68
CuNE2 B:His5264.14
CuCB B:His5263.75
CuND1 B:His5262.13
CuCD2 B:His5264.26
CuC B:His5264.97
CuCE1 B:His5262.96
CuCG B:His5263.24
CuCA B:His5264.06
CuN B:Gly5274.69
CuCB B:Cys5613.16
CuSG B:Cys5612.24
CuCA B:Cys5614.63
CuC B:Trp5634.93
CuO B:Trp5633.78
CuN B:Cys5654.80
CuCB B:Cys5653.44
CuSG B:Cys5652.36
CuCA B:Cys5654.74
CuND1 B:His5694.47
CuCB B:Met5724.44
CuCE B:Met5723.20
CuCG B:Met5723.93
CuSD B:Met5722.45
CuCU1 B:Cua7010.00
CuCU2 B:Cua7012.52

interactive model:


Copper binding site 8 out of 36 in 1qni


Copper binding site 8 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 8 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 8 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: B: His526, B: Cys561, B: Trp563, B: Phe564, B: Cys565, B: His566, B: His569, B: Met572, B: Cua701, B: Hoh2307,

conact list:


AtomAtomDistance (A)
CuND1 B:His5264.34
CuCE1 B:His5264.98
CuO B:Cys5614.42
CuCB B:Cys5613.45
CuSG B:Cys5612.43
CuC B:Cys5614.55
CuCA B:Cys5614.63
CuN B:Trp5634.44
CuC B:Trp5633.52
CuCA B:Trp5634.58
CuO B:Trp5632.55
CuN B:Phe5644.12
CuC B:Phe5643.99
CuCA B:Phe5643.97
CuN B:Cys5653.29
CuCB B:Cys5653.40
CuSG B:Cys5652.20
CuC B:Cys5654.74
CuCA B:Cys5653.96
CuN B:His5664.69
CuO B:His5694.50
CuNE2 B:His5693.95
CuCB B:His5693.81
CuND1 B:His5692.01
CuCD2 B:His5694.16
CuC B:His5694.73
CuCE1 B:His5692.73
CuCG B:His5693.20
CuCA B:His5694.08
CuCB B:Met5724.56
CuCG B:Met5724.88
CuSD B:Met5724.00
CuCU1 B:Cua7012.52
CuCU2 B:Cua7010.00
CuO B:Hoh23074.86

interactive model:


Copper binding site 9 out of 36 in 1qni


Copper binding site 9 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 9 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 9 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: B: His79, B: His80, B: His128, B: Asn189, B: His270, B: His325, B: His376, B: His437, B: Cuz801, B: Hoh2119, B: Hoh2201,

conact list:


AtomAtomDistance (A)
CuCB B:His794.22
CuND1 B:His794.23
CuCG B:His794.69
CuNE2 B:His802.17
CuND1 B:His804.35
CuCD2 B:His803.16
CuCE1 B:His803.21
CuCG B:His804.34
CuNE2 B:His1283.76
CuCD2 B:His1284.76
CuCE1 B:His1284.26
CuND2 B:Asn1893.93
CuOD1 B:Asn1894.79
CuCG B:Asn1894.80
CuNE2 B:His2704.65
CuNE2 B:His3254.15
CuCE1 B:His3254.24
CuNE2 B:His3762.06
CuND1 B:His3764.19
CuCD2 B:His3763.08
CuCE1 B:His3763.04
CuCG B:His3764.23
CuCB B:His4374.14
CuND1 B:His4374.16
CuCG B:His4374.55
CuS1 B:Cuz8012.13
CuCU3 B:Cuz8013.36
CuCU1 B:Cuz8010.00
CuCU4 B:Cuz8013.01
CuCU2 B:Cuz8012.56
CuO B:Hoh21194.80
CuO B:Hoh22013.96

interactive model:


Copper binding site 10 out of 36 in 1qni


Copper binding site 10 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 10 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 10 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: Met570, B: His79, B: His80, B: His128, B: His376, B: His437, B: Cuz801, B: Hoh2201,

conact list:


AtomAtomDistance (A)
CuCE A:Met5704.94
CuSD A:Met5704.97
CuNE2 B:His794.27
CuCB B:His793.65
CuND1 B:His792.18
CuCD2 B:His794.33
CuCE1 B:His793.10
CuCG B:His793.24
CuNE2 B:His803.43
CuCD2 B:His804.54
CuCE1 B:His803.86
CuNE2 B:His1282.09
CuND1 B:His1284.26
CuCD2 B:His1283.07
CuCE1 B:His1283.12
CuCG B:His1284.25
CuNE2 B:His3764.49
CuNE2 B:His4374.80
CuCB B:His4374.52
CuND1 B:His4373.24
CuCD2 B:His4374.91
CuCE1 B:His4373.83
CuCG B:His4374.07
CuS1 B:Cuz8011.92
CuCU3 B:Cuz8014.48
CuCU1 B:Cuz8012.56
CuCU4 B:Cuz8012.55
CuCU2 B:Cuz8010.00
CuO B:Hoh22014.63

interactive model:


Copper binding site 11 out of 36 in 1qni


Copper binding site 11 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 11 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 11 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: Phe564, B: Asn189, B: His270, B: Leu324, B: His325, B: Gly375, B: His376, B: Cuz801, B: Hoh2201,

conact list:


AtomAtomDistance (A)
CuCE2 A:Phe5644.50
CuOD1 B:Asn1894.98
CuNE2 B:His2702.20
CuND1 B:His2704.37
CuCD2 B:His2703.16
CuCE1 B:His2703.24
CuCG B:His2704.34
CuCB B:Leu3245.00
CuNE2 B:His3252.11
CuND1 B:His3254.23
CuCD2 B:His3253.15
CuCE1 B:His3253.06
CuCG B:His3254.29
CuC B:Gly3754.89
CuNE2 B:His3763.47
CuN B:His3764.80
CuND1 B:His3764.67
CuCD2 B:His3763.59
CuCE1 B:His3764.17
CuCG B:His3764.37
CuS1 B:Cuz8012.71
CuCU3 B:Cuz8010.00
CuCU1 B:Cuz8013.36
CuCU4 B:Cuz8013.31
CuCU2 B:Cuz8014.48
CuO B:Hoh22012.38

interactive model:

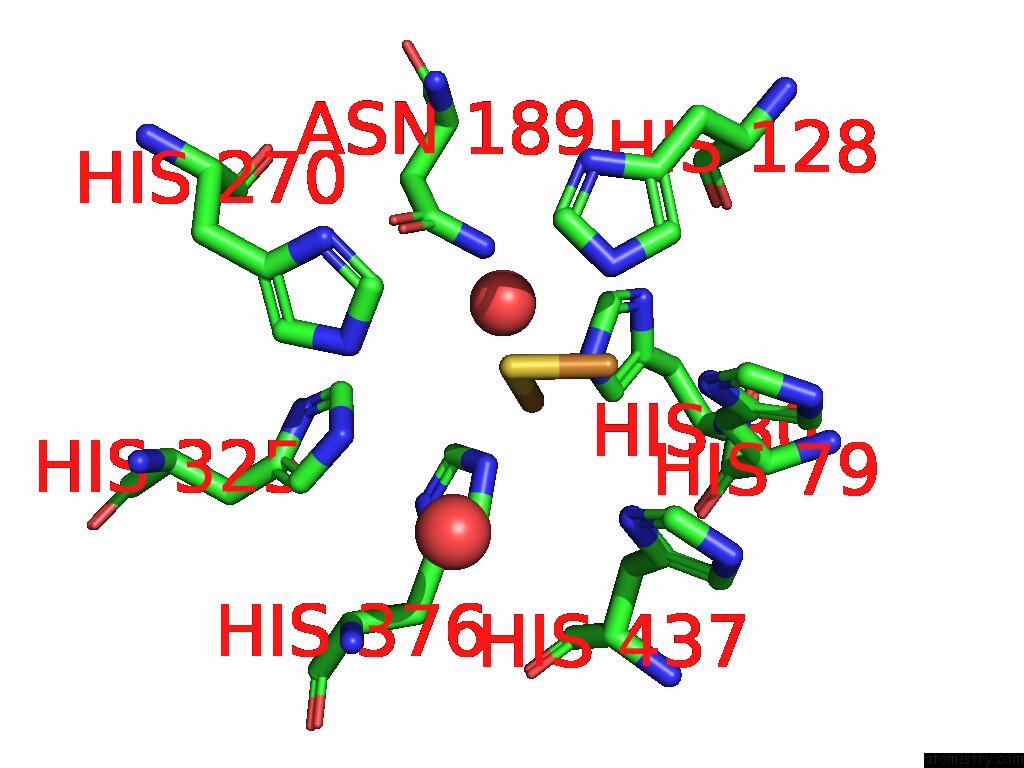

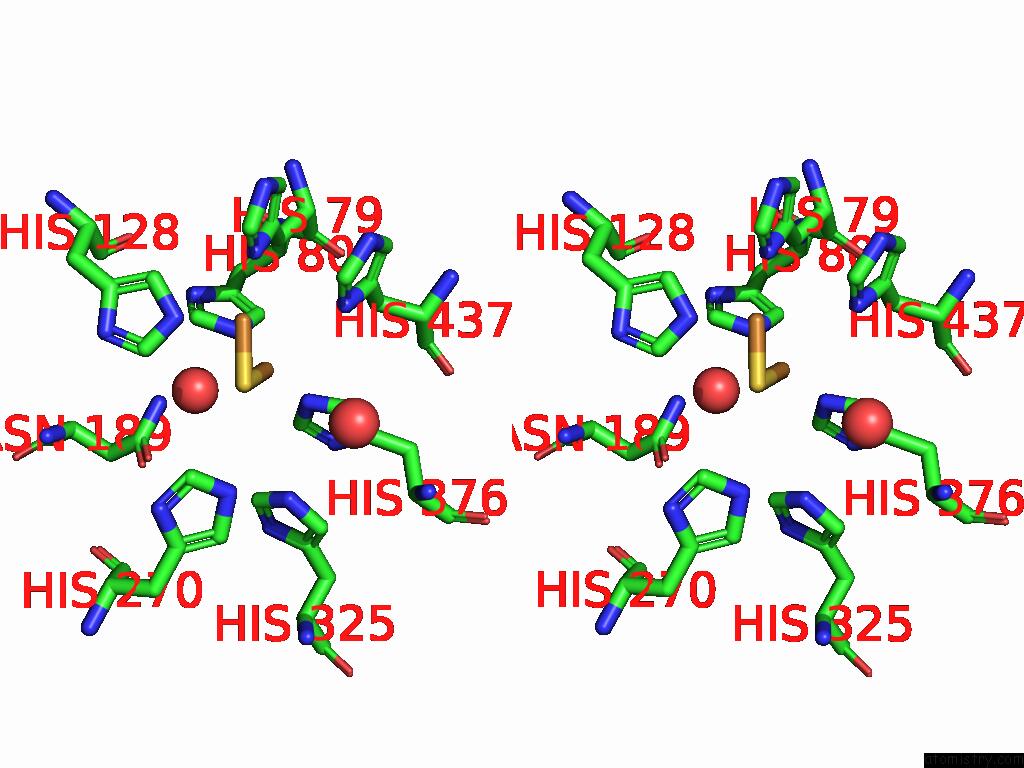

Copper binding site 12 out of 36 in 1qni


Copper binding site 12 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 12 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 12 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: Phe564, B: His79, B: His80, B: His128, B: His270, B: His376, B: Lys397, B: His437, B: Cuz801, B: Hoh2201,

conact list:


AtomAtomDistance (A)
CuCE2 A:Phe5644.19
CuCD2 A:Phe5644.39
CuCB B:His794.88
CuND1 B:His793.80
CuCE1 B:His794.45
CuCG B:His794.58
CuNE2 B:His804.81
CuNE2 B:His1284.51
CuNE2 B:His2704.88
CuNE2 B:His3763.93
CuCD2 B:His3763.87
CuCE B:Lys3974.87
CuNZ B:Lys3974.15
CuNE2 B:His4374.02
CuCB B:His4373.42
CuND1 B:His4371.88
CuCD2 B:His4374.04
CuCE1 B:His4372.87
CuCG B:His4372.95
CuCA B:His4374.39
CuS1 B:Cuz8012.38
CuCU3 B:Cuz8013.31
CuCU1 B:Cuz8013.01
CuCU4 B:Cuz8010.00
CuCU2 B:Cuz8012.55
CuO B:Hoh22012.32

interactive model:


Copper binding site 13 out of 36 in 1qni


Copper binding site 13 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 13 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 13 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: Ala495, C: Thr525, C: His526, C: Gly527, C: Cys561, C: Trp563, C: Cys565, C: His569, C: Met572, C: Cua701,

conact list:


AtomAtomDistance (A)
CuO C:Ala4954.70
CuO C:Thr5254.80
CuNE2 C:His5263.93
CuCB C:His5263.93
CuND1 C:His5262.07
CuCD2 C:His5264.18
CuCE1 C:His5262.71
CuCG C:His5263.28
CuCA C:His5264.23
CuN C:Gly5274.80
CuCB C:Cys5613.29
CuSG C:Cys5612.32
CuCA C:Cys5614.74
CuC C:Trp5635.00
CuO C:Trp5633.85
CuN C:Cys5654.82
CuCB C:Cys5653.60
CuSG C:Cys5652.29
CuCA C:Cys5654.82
CuND1 C:His5694.42
CuCE1 C:His5694.95
CuCB C:Met5724.49
CuCE C:Met5723.08
CuCG C:Met5723.91
CuSD C:Met5722.38
CuCU1 C:Cua7010.00
CuCU2 C:Cua7012.49

interactive model:


Copper binding site 14 out of 36 in 1qni


Copper binding site 14 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 14 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 14 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: His526, C: Cys561, C: Trp563, C: Phe564, C: Cys565, C: His566, C: His569, C: Met572, C: Cua701, C: Hoh2092,

conact list:


AtomAtomDistance (A)
CuND1 C:His5264.23
CuCE1 C:His5264.73
CuO C:Cys5614.68
CuCB C:Cys5613.46
CuSG C:Cys5612.43
CuC C:Cys5614.67
CuCA C:Cys5614.70
CuN C:Trp5634.54
CuC C:Trp5633.54
CuCA C:Trp5634.63
CuO C:Trp5632.60
CuO C:Phe5644.87
CuN C:Phe5644.10
CuC C:Phe5643.87
CuCA C:Phe5643.90
CuN C:Cys5653.23
CuCB C:Cys5653.47
CuSG C:Cys5652.30
CuC C:Cys5654.71
CuCA C:Cys5653.94
CuN C:His5664.66
CuO C:His5694.67
CuNE2 C:His5693.95
CuCB C:His5693.85
CuND1 C:His5692.00
CuCD2 C:His5694.17
CuC C:His5694.78
CuCE1 C:His5692.71
CuCG C:His5693.22
CuCA C:His5694.10
CuCB C:Met5724.67
CuCG C:Met5724.90
CuSD C:Met5723.93
CuCU1 C:Cua7012.49
CuCU2 C:Cua7010.00
CuO C:Hoh20925.00

interactive model:


Copper binding site 15 out of 36 in 1qni


Copper binding site 15 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 15 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 15 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: His79, C: His80, C: His128, C: Asn189, C: His270, C: His325, C: His376, C: His437, C: Asp438, C: Cuz801, C: Hoh2060,

conact list:


AtomAtomDistance (A)
CuO C:His794.63
CuCB C:His794.09
CuND1 C:His794.27
CuC C:His794.94
CuCG C:His794.63
CuNE2 C:His802.15
CuND1 C:His804.30
CuCD2 C:His802.97
CuCE1 C:His803.24
CuCG C:His804.19
CuNE2 C:His1283.85
CuCD2 C:His1284.76
CuCE1 C:His1284.42
CuND2 C:Asn1893.94
CuOD1 C:Asn1894.88
CuCG C:Asn1894.87
CuNE2 C:His2704.75
CuNE2 C:His3254.36
CuCE1 C:His3254.34
CuNE2 C:His3761.90
CuND1 C:His3764.01
CuCD2 C:His3762.96
CuCE1 C:His3762.84
CuCG C:His3764.08
CuCB C:His4374.03
CuND1 C:His4374.15
CuCG C:His4374.43
CuN C:Asp4384.98
CuCB C:Asp4384.91
CuS1 C:Cuz8012.14
CuCU3 C:Cuz8012.97
CuCU1 C:Cuz8010.00
CuCU4 C:Cuz8012.53
CuCU2 C:Cuz8013.35
CuO C:Hoh20603.90

interactive model:


Copper binding site 16 out of 36 in 1qni


Copper binding site 16 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 16 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 16 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: Asn189, C: His270, C: His325, C: His376, D: Phe564, C: Cuz801, C: Hoh2060,

conact list:


AtomAtomDistance (A)
CuOD1 C:Asn1894.75
CuNE2 C:His2701.97
CuND1 C:His2704.10
CuCD2 C:His2702.96
CuCE1 C:His2702.97
CuCG C:His2704.11
CuNE2 C:His3252.11
CuND1 C:His3254.16
CuCD2 C:His3253.27
CuCE1 C:His3252.93
CuCG C:His3254.33
CuNE2 C:His3763.42
CuND1 C:His3764.71
CuCD2 C:His3763.73
CuCE1 C:His3764.09
CuCG C:His3764.53
CuCE2 D:Phe5644.76
CuS1 C:Cuz8012.24
CuCU3 C:Cuz8013.34
CuCU1 C:Cuz8013.35
CuCU4 C:Cuz8014.32
CuCU2 C:Cuz8010.00
CuO C:Hoh20602.67

interactive model:


Copper binding site 17 out of 36 in 1qni


Copper binding site 17 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 17 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 17 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: His79, C: His80, C: His128, C: His270, C: His376, C: Lys397, C: His437, D: Phe564, C: Cuz801, C: Hoh2060,

conact list:


AtomAtomDistance (A)
CuCB C:His794.91
CuND1 C:His793.93
CuCE1 C:His794.58
CuCG C:His794.66
CuNE2 C:His804.88
CuNE2 C:His1284.39
CuNE2 C:His2704.80
CuNE2 C:His3763.80
CuCD2 C:His3763.83
CuCE C:Lys3974.78
CuNZ C:Lys3974.19
CuNE2 C:His4374.06
CuCB C:His4373.57
CuND1 C:His4371.99
CuCD2 C:His4374.14
CuCE1 C:His4372.90
CuCG C:His4373.09
CuCA C:His4374.57
CuCE2 D:Phe5644.18
CuCD2 D:Phe5644.44
CuS1 C:Cuz8012.43
CuCU3 C:Cuz8010.00
CuCU1 C:Cuz8012.97
CuCU4 C:Cuz8012.55
CuCU2 C:Cuz8013.34
CuO C:Hoh20602.18

interactive model:

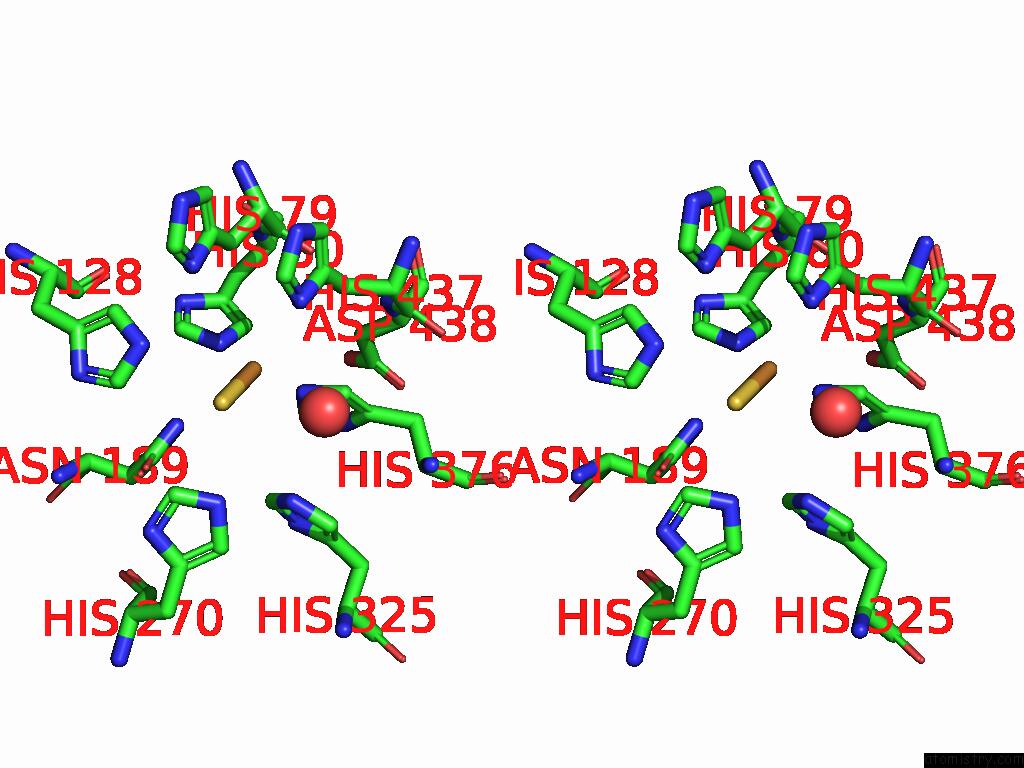

Copper binding site 18 out of 36 in 1qni


Copper binding site 18 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 18 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 18 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: His79, C: His80, C: His128, C: His376, C: His437, D: Met570, C: Cuz801, C: Hoh2060,

conact list:


AtomAtomDistance (A)
CuNE2 C:His794.30
CuCB C:His793.51
CuND1 C:His792.20
CuCD2 C:His794.31
CuCE1 C:His793.17
CuCG C:His793.18
CuCA C:His794.91
CuNE2 C:His803.41
CuND1 C:His804.83
CuCD2 C:His804.50
CuCE1 C:His803.70
CuNE2 C:His1282.03
CuND1 C:His1284.19
CuCD2 C:His1282.99
CuCE1 C:His1283.07
CuCG C:His1284.17
CuNE2 C:His3764.33
CuNE2 C:His4374.80
CuCB C:His4374.61
CuND1 C:His4373.45
CuCD2 C:His4374.90
CuCE1 C:His4373.94
CuCG C:His4374.16
CuCE D:Met5704.95
CuS1 C:Cuz8012.16
CuCU3 C:Cuz8012.55
CuCU1 C:Cuz8012.53
CuCU4 C:Cuz8010.00
CuCU2 C:Cuz8014.32
CuO C:Hoh20604.51

interactive model:


Copper binding site 19 out of 36 in 1qni


Copper binding site 19 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 19 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 19 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: D: Ala495, D: Thr525, D: His526, D: Gly527, D: Cys561, D: Trp563, D: Cys565, D: His569, D: Met572, D: Cua701,

conact list:


AtomAtomDistance (A)
CuO D:Ala4954.41
CuO D:Thr5254.74
CuNE2 D:His5264.00
CuCB D:His5263.93
CuND1 D:His5262.09
CuCD2 D:His5264.24
CuCE1 D:His5262.77
CuCG D:His5263.30
CuCA D:His5264.21
CuN D:Gly5274.76
CuCB D:Cys5613.22
CuSG D:Cys5612.33
CuCA D:Cys5614.67
CuO D:Trp5633.87
CuN D:Cys5654.92
CuCB D:Cys5653.74
CuSG D:Cys5652.31
CuCA D:Cys5654.94
CuND1 D:His5694.44
CuCE1 D:His5694.91
CuCB D:Met5724.47
CuCE D:Met5723.19
CuCG D:Met5723.94
CuSD D:Met5722.42
CuCU1 D:Cua7010.00
CuCU2 D:Cua7012.49

interactive model:


Copper binding site 20 out of 36 in 1qni


Copper binding site 20 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 20 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 20 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: D: His526, D: Cys561, D: Trp563, D: Phe564, D: Cys565, D: His566, D: His569, D: Met572, D: Cua701,

conact list:


AtomAtomDistance (A)
CuND1 D:His5264.27
CuCE1 D:His5264.78
CuO D:Cys5614.41
CuCB D:Cys5613.40
CuSG D:Cys5612.34
CuC D:Cys5614.58
CuCA D:Cys5614.62
CuN D:Trp5634.53
CuC D:Trp5633.55
CuCA D:Trp5634.61
CuO D:Trp5632.61
CuN D:Phe5644.14
CuC D:Phe5644.01
CuCA D:Phe5643.97
CuN D:Cys5653.37
CuCB D:Cys5653.61
CuSG D:Cys5652.29
CuC D:Cys5654.80
CuCA D:Cys5654.08
CuN D:His5664.78
CuO D:His5694.55
CuNE2 D:His5693.91
CuCB D:His5693.91
CuND1 D:His5692.01
CuCD2 D:His5694.17
CuC D:His5694.77
CuCE1 D:His5692.67
CuCG D:His5693.25
CuCA D:His5694.12
CuCB D:Met5724.67
CuCG D:Met5724.93
CuSD D:Met5723.97
CuCU1 D:Cua7012.49
CuCU2 D:Cua7010.00

interactive model:


Copper binding site 21 out of 36 in 1qni


Copper binding site 21 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 21 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 21 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: D: His79, D: His80, D: His128, D: Asn189, D: His270, D: His325, D: His376, D: His437, D: Cuz801, D: Hoh2064,

conact list:


AtomAtomDistance (A)
CuO D:His794.88
CuCB D:His794.01
CuND1 D:His794.17
CuCG D:His794.54
CuNE2 D:His802.14
CuND1 D:His804.31
CuCD2 D:His803.06
CuCE1 D:His803.20
CuCG D:His804.26
CuNE2 D:His1283.64
CuCD2 D:His1284.60
CuCE1 D:His1284.20
CuND2 D:Asn1893.95
CuCG D:Asn1894.96
CuNE2 D:His2704.63
CuCE1 D:His2704.96
CuNE2 D:His3254.39
CuCE1 D:His3254.47
CuNE2 D:His3762.03
CuND1 D:His3764.12
CuCD2 D:His3763.14
CuCE1 D:His3762.92
CuCG D:His3764.24
CuCB D:His4374.16
CuND1 D:His4374.15
CuCG D:His4374.49
CuS1 D:Cuz8012.15
CuCU3 D:Cuz8012.98
CuCU1 D:Cuz8010.00
CuCU4 D:Cuz8012.54
CuCU2 D:Cuz8013.35
CuO D:Hoh20644.02

interactive model:


Copper binding site 22 out of 36 in 1qni


Copper binding site 22 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 22 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 22 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: Phe564, D: His270, D: His325, D: Gly375, D: His376, D: Cuz801, D: Hoh2064,

conact list:


AtomAtomDistance (A)
CuCE2 C:Phe5644.69
CuNE2 D:His2702.21
CuND1 D:His2704.39
CuCD2 D:His2703.15
CuCE1 D:His2703.27
CuCG D:His2704.35
CuNE2 D:His3252.02
CuND1 D:His3254.12
CuCD2 D:His3253.03
CuCE1 D:His3252.98
CuCG D:His3254.16
CuO D:Gly3754.97
CuC D:Gly3754.81
CuNE2 D:His3763.24
CuN D:His3764.84
CuND1 D:His3764.47
CuCD2 D:His3763.47
CuCE1 D:His3763.91
CuCG D:His3764.24
CuS1 D:Cuz8012.35
CuCU3 D:Cuz8013.33
CuCU1 D:Cuz8013.35
CuCU4 D:Cuz8014.42
CuCU2 D:Cuz8010.00
CuO D:Hoh20642.59

interactive model:


Copper binding site 23 out of 36 in 1qni


Copper binding site 23 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 23 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 23 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: Phe564, D: His79, D: His80, D: His128, D: His270, D: His376, D: Lys397, D: His437, D: Cuz801, C: Hoh2036, D: Hoh2064,

conact list:


AtomAtomDistance (A)
CuCE2 C:Phe5644.02
CuCD2 C:Phe5644.27
CuCB D:His794.90
CuND1 D:His794.01
CuCE1 D:His794.69
CuCG D:His794.68
CuNE2 D:His804.87
CuNE2 D:His1284.45
CuNE2 D:His2704.78
CuNE2 D:His3763.75
CuCD2 D:His3763.82
CuCE D:Lys3974.71
CuNZ D:Lys3973.90
CuNE2 D:His4374.02
CuCB D:His4373.64
CuND1 D:His4371.99
CuCD2 D:His4374.14
CuCE1 D:His4372.85
CuCG D:His4373.11
CuCA D:His4374.60
CuS1 D:Cuz8012.28
CuCU3 D:Cuz8010.00
CuCU1 D:Cuz8012.98
CuCU4 D:Cuz8012.54
CuCU2 D:Cuz8013.33
CuO C:Hoh20363.05
CuO D:Hoh20642.29

interactive model:


Copper binding site 24 out of 36 in 1qni


Copper binding site 24 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 24 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 24 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: C: Met570, D: His79, D: His80, D: His128, D: His270, D: His376, D: His437, D: Cuz801, C: Hoh2036, D: Hoh2064,

conact list:


AtomAtomDistance (A)
CuCE C:Met5704.82
CuSD C:Met5704.94
CuNE2 D:His794.32
CuCB D:His793.68
CuND1 D:His792.26
CuCD2 D:His794.37
CuCE1 D:His793.17
CuCG D:His793.29
CuNE2 D:His803.55
CuCD2 D:His804.71
CuCE1 D:His803.85
CuNE2 D:His1282.01
CuND1 D:His1284.18
CuCD2 D:His1283.02
CuCE1 D:His1283.04
CuCG D:His1284.18
CuCE1 D:His2704.89
CuNE2 D:His3764.40
CuNE2 D:His4374.83
CuCB D:His4374.77
CuND1 D:His4373.52
CuCD2 D:His4375.00
CuCE1 D:His4373.96
CuCG D:His4374.28
CuS1 D:Cuz8012.14
CuCU3 D:Cuz8012.54
CuCU1 D:Cuz8012.54
CuCU4 D:Cuz8010.00
CuCU2 D:Cuz8014.42
CuO C:Hoh20362.96
CuO D:Hoh20644.63

interactive model:


Copper binding site 25 out of 36 in 1qni


Copper binding site 25 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 25 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 25 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: E: Ala495, E: Thr525, E: His526, E: Gly527, E: Cys561, E: Trp563, E: Cys565, E: His569, E: Met572, E: Cua701,

conact list:


AtomAtomDistance (A)
CuO E:Ala4954.93
CuO E:Thr5254.58
CuNE2 E:His5264.01
CuCB E:His5263.89
CuND1 E:His5262.06
CuCD2 E:His5264.23
CuC E:His5264.99
CuCE1 E:His5262.78
CuCG E:His5263.27
CuCA E:His5264.10
CuN E:Gly5274.67
CuCB E:Cys5613.28
CuSG E:Cys5612.27
CuCA E:Cys5614.72
CuC E:Trp5634.86
CuO E:Trp5633.73
CuN E:Cys5654.61
CuCB E:Cys5653.27
CuSG E:Cys5652.17
CuCA E:Cys5654.55
CuND1 E:His5694.42
CuCE1 E:His5694.84
CuCB E:Met5724.57
CuCE E:Met5723.40
CuCG E:Met5724.06
CuSD E:Met5722.47
CuCU1 E:Cua7010.00
CuCU2 E:Cua7012.51

interactive model:


Copper binding site 26 out of 36 in 1qni


Copper binding site 26 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 26 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 26 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: E: His526, E: Cys561, E: Trp563, E: Phe564, E: Cys565, E: His566, E: His569, E: Met572, E: Cua701,

conact list:


AtomAtomDistance (A)
CuND1 E:His5264.38
CuCE1 E:His5264.87
CuO E:Cys5614.22
CuCB E:Cys5613.49
CuSG E:Cys5612.26
CuC E:Cys5614.43
CuCA E:Cys5614.60
CuN E:Trp5634.46
CuC E:Trp5633.53
CuCA E:Trp5634.55
CuO E:Trp5632.63
CuN E:Phe5644.13
CuC E:Phe5644.04
CuCA E:Phe5644.00
CuN E:Cys5653.28
CuCB E:Cys5653.47
CuSG E:Cys5652.23
CuC E:Cys5654.77
CuCA E:Cys5653.97
CuN E:His5664.70
CuO E:His5694.43
CuNE2 E:His5693.78
CuCB E:His5693.95
CuND1 E:His5691.93
CuCD2 E:His5694.10
CuC E:His5694.74
CuCE1 E:His5692.51
CuCG E:His5693.22
CuCA E:His5694.20
CuCB E:Met5724.64
CuCG E:Met5724.93
CuSD E:Met5724.03
CuCU1 E:Cua7012.51
CuCU2 E:Cua7010.00

interactive model:


Copper binding site 27 out of 36 in 1qni


Copper binding site 27 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 27 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 27 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: E: His79, E: His80, E: His128, E: Asn189, E: His270, E: His325, E: His376, E: His437, E: Cuz801, E: Hoh2087, E: Hoh2171,

conact list:


AtomAtomDistance (A)
CuO E:His794.90
CuCB E:His794.21
CuND1 E:His794.31
CuCG E:His794.75
CuNE2 E:His802.02
CuND1 E:His804.19
CuCD2 E:His803.01
CuCE1 E:His803.05
CuCG E:His804.18
CuNE2 E:His1283.77
CuCD2 E:His1284.85
CuCE1 E:His1284.00
CuND2 E:Asn1893.85
CuOD1 E:Asn1894.81
CuCG E:Asn1894.77
CuNE2 E:His2704.75
CuNE2 E:His3254.26
CuCE1 E:His3254.20
CuNE2 E:His3762.06
CuND1 E:His3764.13
CuCD2 E:His3763.19
CuCE1 E:His3762.92
CuCG E:His3764.27
CuCB E:His4374.24
CuND1 E:His4374.34
CuCG E:His4374.61
CuS1 E:Cuz8012.08
CuCU3 E:Cuz8013.00
CuCU1 E:Cuz8010.00
CuCU4 E:Cuz8012.55
CuCU2 E:Cuz8013.34
CuO E:Hoh20874.20
CuO E:Hoh21714.14

interactive model:


Copper binding site 28 out of 36 in 1qni


Copper binding site 28 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 28 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 28 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: E: Asn189, E: His270, E: His325, E: His376, F: Phe564, E: Cuz801, E: Hoh2171,

conact list:


AtomAtomDistance (A)
CuOD1 E:Asn1894.69
CuNE2 E:His2702.09
CuND1 E:His2704.23
CuCD2 E:His2703.06
CuCE1 E:His2703.10
CuCG E:His2704.22
CuNE2 E:His3252.12
CuND1 E:His3254.19
CuCD2 E:His3253.29
CuCE1 E:His3252.96
CuCG E:His3254.36
CuNE2 E:His3763.45
CuND1 E:His3764.71
CuCD2 E:His3763.79
CuCE1 E:His3764.08
CuCG E:His3764.56
CuCE2 F:Phe5644.56
CuCZ F:Phe5644.97
CuS1 E:Cuz8012.22
CuCU3 E:Cuz8013.34
CuCU1 E:Cuz8013.34
CuCU4 E:Cuz8014.34
CuCU2 E:Cuz8010.00
CuO E:Hoh21712.82

interactive model:


Copper binding site 29 out of 36 in 1qni


Copper binding site 29 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 29 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 29 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: E: His79, E: His80, E: His128, E: His270, E: His376, E: Lys397, E: His437, F: Phe564, E: Cuz801, E: Hoh2162, E: Hoh2171, F: Hoh2220,

conact list:


AtomAtomDistance (A)
CuCB E:His794.88
CuND1 E:His793.78
CuCE1 E:His794.57
CuCG E:His794.68
CuNE2 E:His804.64
CuNE2 E:His1284.46
CuNE2 E:His2704.93
CuNE2 E:His3763.76
CuCD2 E:His3763.85
CuCE E:Lys3974.82
CuNZ E:Lys3973.97
CuNE2 E:His4374.04
CuCB E:His4373.52
CuND1 E:His4372.01
CuCD2 E:His4374.09
CuCE1 E:His4372.91
CuCG E:His4373.05
CuCA E:His4374.46
CuCE2 F:Phe5644.00
CuCD2 F:Phe5644.32
CuS1 E:Cuz8012.22
CuCU3 E:Cuz8010.00
CuCU1 E:Cuz8013.00
CuCU4 E:Cuz8012.55
CuCU2 E:Cuz8013.34
CuO E:Hoh21624.83
CuO E:Hoh21712.26
CuO F:Hoh22203.58

interactive model:


Copper binding site 30 out of 36 in 1qni


Copper binding site 30 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 30 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 30 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: E: His79, E: His80, E: His128, E: His376, E: His437, F: Met570, E: Cuz801, E: Hoh2171, F: Hoh2220,

conact list:


AtomAtomDistance (A)
CuNE2 E:His794.37
CuCB E:His793.62
CuND1 E:His792.28
CuCD2 E:His794.40
CuCE1 E:His793.22
CuCG E:His793.30
CuNE2 E:His803.31
CuND1 E:His804.83
CuCD2 E:His804.48
CuCE1 E:His803.62
CuNE2 E:His1282.03
CuND1 E:His1284.13
CuCD2 E:His1283.05
CuCE1 E:His1282.99
CuCG E:His1284.17
CuNE2 E:His3764.42
CuNE2 E:His4374.71
CuCB E:His4374.60
CuND1 E:His4373.50
CuCD2 E:His4374.81
CuCE1 E:His4373.93
CuCG E:His4374.14
CuSD F:Met5704.96
CuS1 E:Cuz8012.14
CuCU3 E:Cuz8012.55
CuCU1 E:Cuz8012.55
CuCU4 E:Cuz8010.00
CuCU2 E:Cuz8014.34
CuO E:Hoh21714.66
CuO F:Hoh22203.59

interactive model:


Copper binding site 31 out of 36 in 1qni


Copper binding site 31 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 31 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 31 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: F: Ala495, F: Thr525, F: His526, F: Gly527, F: Cys561, F: Trp563, F: Cys565, F: His569, F: Met572, F: Cua701,

conact list:


AtomAtomDistance (A)
CuO F:Ala4954.67
CuO F:Thr5254.86
CuNE2 F:His5264.06
CuCB F:His5263.92
CuND1 F:His5262.10
CuCD2 F:His5264.28
CuCE1 F:His5262.82
CuCG F:His5263.31
CuCA F:His5264.18
CuN F:Gly5274.74
CuCB F:Cys5613.35
CuSG F:Cys5612.32
CuCA F:Cys5614.77
CuO F:Trp5633.88
CuN F:Cys5654.83
CuCB F:Cys5653.55
CuSG F:Cys5652.34
CuCA F:Cys5654.81
CuND1 F:His5694.44
CuCE1 F:His5694.96
CuCB F:Met5724.49
CuCE F:Met5723.23
CuCG F:Met5723.92
CuSD F:Met5722.38
CuCU1 F:Cua7010.00
CuCU2 F:Cua7012.52

interactive model:


Copper binding site 32 out of 36 in 1qni


Copper binding site 32 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 32 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 32 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: F: His526, F: Cys561, F: Trp563, F: Phe564, F: Cys565, F: His566, F: His569, F: Met572, F: Cua701,

conact list:


AtomAtomDistance (A)
CuND1 F:His5264.37
CuCE1 F:His5264.89
CuO F:Cys5614.49
CuCB F:Cys5613.50
CuSG F:Cys5612.37
CuC F:Cys5614.58
CuCA F:Cys5614.67
CuN F:Trp5634.39
CuC F:Trp5633.52
CuCA F:Trp5634.56
CuO F:Trp5632.58
CuN F:Phe5644.11
CuC F:Phe5644.03
CuCA F:Phe5643.98
CuN F:Cys5653.31
CuCB F:Cys5653.49
CuSG F:Cys5652.25
CuC F:Cys5654.80
CuCA F:Cys5654.01
CuN F:His5664.82
CuO F:His5694.49
CuNE2 F:His5693.89
CuCB F:His5693.88
CuND1 F:His5691.97
CuCD2 F:His5694.14
CuC F:His5694.74
CuCE1 F:His5692.64
CuCG F:His5693.21
CuCA F:His5694.12
CuCB F:Met5724.68
CuCG F:Met5724.91
CuSD F:Met5723.95
CuCU1 F:Cua7012.52
CuCU2 F:Cua7010.00

interactive model:


Copper binding site 33 out of 36 in 1qni


Copper binding site 33 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 33 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 33 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: F: Asn189, F: His270, F: Leu324, F: His325, F: Gly375, F: His376, F: Cuz801, F: Hoh2042, F: Hoh2094, F: Hoh2144,

conact list:


AtomAtomDistance (A)
CuOD1 F:Asn1894.94
CuNE2 F:His2702.19
CuND1 F:His2704.39
CuCD2 F:His2702.96
CuCE1 F:His2703.35
CuCG F:His2704.21
CuCB F:Leu3244.97
CuNE2 F:His3251.91
CuND1 F:His3253.99
CuCD2 F:His3253.03
CuCE1 F:His3252.80
CuCG F:His3254.11
CuC F:Gly3754.85
CuNE2 F:His3763.25
CuN F:His3764.87
CuND1 F:His3764.54
CuCD2 F:His3763.40
CuCE1 F:His3764.01
CuCG F:His3764.23
CuS1 F:Cuz8012.34
CuCU3 F:Cuz8013.33
CuCU1 F:Cuz8010.00
CuCU4 F:Cuz8014.51
CuCU2 F:Cuz8013.33
CuO F:Hoh20424.82
CuO F:Hoh20942.95
CuO F:Hoh21442.93

interactive model:


Copper binding site 34 out of 36 in 1qni


Copper binding site 34 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 34 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 34 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: F: His79, F: His80, F: His128, F: Asn189, F: His270, F: His325, F: His376, F: His437, F: Cuz801, F: Hoh2042, F: Hoh2144,

conact list:


AtomAtomDistance (A)
CuCB F:His794.48
CuND1 F:His794.61
CuNE2 F:His802.05
CuND1 F:His804.18
CuCD2 F:His803.08
CuCE1 F:His803.03
CuCG F:His804.22
CuNE2 F:His1283.77
CuCD2 F:His1284.78
CuCE1 F:His1284.13
CuND2 F:Asn1893.58
CuOD1 F:Asn1894.24
CuCG F:Asn1894.37
CuNE2 F:His2704.46
CuCE1 F:His2704.92
CuNE2 F:His3254.05
CuCE1 F:His3254.01
CuNE2 F:His3762.04
CuND1 F:His3764.08
CuCD2 F:His3763.20
CuCE1 F:His3762.87
CuCG F:His3764.26
CuCB F:His4374.57
CuND1 F:His4374.78
CuCG F:His4374.96
CuS1 F:Cuz8012.28
CuCU3 F:Cuz8013.04
CuCU1 F:Cuz8013.33
CuCU4 F:Cuz8012.51
CuCU2 F:Cuz8010.00
CuO F:Hoh20424.54
CuO F:Hoh21444.37

interactive model:


Copper binding site 35 out of 36 in 1qni


Copper binding site 35 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 35 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 35 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: E: Phe564, F: His79, F: His80, F: His128, F: His270, F: His325, F: His376, F: Lys397, F: His437, F: Cuz801, F: Hoh2042, F: Hoh2094, F: Hoh2122, F: Hoh2144,

conact list:


AtomAtomDistance (A)
CuCE2 E:Phe5644.40
CuCD2 E:Phe5644.86
CuCB F:His794.79
CuND1 F:His793.71
CuCE1 F:His794.52
CuCG F:His794.60
CuNE2 F:His804.70
CuNE2 F:His1284.31
CuNE2 F:His2704.64
CuNE2 F:His3254.94
CuNE2 F:His3763.61
CuCD2 F:His3763.65
CuCE1 F:His3764.92
CuCG F:His3765.00
CuNZ F:Lys3974.44
CuNE2 F:His4374.16
CuCB F:His4373.54
CuND1 F:His4372.23
CuCD2 F:His4374.16
CuCE1 F:His4373.12
CuCG F:His4373.13
CuCA F:His4374.52
CuS1 F:Cuz8012.60
CuCU3 F:Cuz8010.00
CuCU1 F:Cuz8013.33
CuCU4 F:Cuz8012.51
CuCU2 F:Cuz8013.04
CuO F:Hoh20422.54
CuO F:Hoh20943.06
CuO F:Hoh21224.93
CuO F:Hoh21442.35

interactive model:


Copper binding site 36 out of 36 in 1qni


Copper binding site 36 out of 36 in 1qni
Click to enlarge
stereopicture of Copper binding site 36 out of 36 in 1qni
Click to enlarge
Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 36 of Copper in the PDB 1qni. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Copper atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: F: His79, F: His80, F: His128, F: His376, F: His437, F: Cuz801, F: Hoh2042, F: Hoh2094, F: Hoh2144,

conact list:


AtomAtomDistance (A)
CuNE2 F:His794.54
CuCB F:His793.46
CuND1 F:His792.40
CuCD2 F:His794.45
CuCE1 F:His793.45
CuCG F:His793.28
CuCA F:His794.87
CuNE2 F:His803.29
CuND1 F:His804.49
CuCD2 F:His804.42
CuCE1 F:His803.37
CuNE2 F:His1282.02
CuND1 F:His1284.14
CuCD2 F:His1282.98
CuCE1 F:His1283.03
CuCG F:His1284.13
CuNE2 F:His3764.24
CuCD2 F:His3764.99
CuNE2 F:His4374.88
CuCB F:His4374.59
CuND1 F:His4373.82
CuCD2 F:His4374.84
CuCE1 F:His4374.28
CuCG F:His4374.22
CuS1 F:Cuz8012.48
CuCU3 F:Cuz8012.51
CuCU1 F:Cuz8014.51
CuCU4 F:Cuz8010.00
CuCU2 F:Cuz8012.51
CuO F:Hoh20422.57
CuO F:Hoh20944.77
CuO F:Hoh21444.77

interactive model:




© Copyright 2008-2012 by atomistry.com
